Vehicle Profile

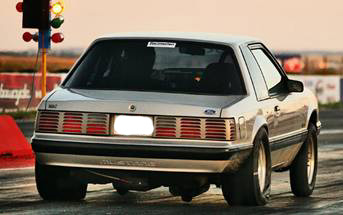

1990 Ford Mustang LX Coupe



Engine



Dart 9.2" Deck 4 Bolt Main Block, 399 CI
Oliver Billet Steel Connecting Rods
Scat Q-Light Billet Steel Crankshaft
Ross Custom Pistons, 11:1 compression
TEA Ported Edelbrock Victor Heads
2.15" Intake Valves, 1.60" Exhaust Valves
Custom Billet Box Style Intake Manifold
105mm Accufab Throttle Body
Comp Cams Custom Grind Solid Roller Cam
RCI 2" to 3.5" Custom Long Tube Headers
Dual 3.5" Exhaust
Custom Higher Arcing Aluminum 3.5" X-Pipe and Mufflers
83# Injectors, Aeromotive 1000 fuel pump
MSD 6AL CD Ignition and 3 step control
MSD Pro-Billet Front Drive Distributor
MSD HVC-II Coil & MSD Plug Wires
Meziere Electric Water Pump
ATI Super Dampner
SDS EFI Engine Management
Naturally Aspirated - No Power Adders
91 Octane Pump Gas - No Additives



Drivetrain

McLeod Soft-Lok Clutch
164 Tooth McLeod Aluminum Flywheel
MacLeod SFI Blow-Proof Bellhousing
Ford Racing Aluminum Driveshaft
Lenco ST1200 4 Speed
4.88:1 Final Drive, Strange Spool
33 Spline Strange Pro-Race Axles
Steeda Weight Jacker Lower Control Arms
Steeda Double Adjustable Upper Control Arms
Strange 10-way Adjustable Shocks and Struts

Front Coil Overs

Tublular K-Member and Front A-Arms



Other Modifications



Wolfe Racecraft 10 pt. Chromoly Roll Cage

Wolfe Racecraft Single Drag Race Sway Bar
Wild Rides Stangbox
WMS Subframe Connectors
Cobra Monaco Seats, RCI 5 pt. Harness
Autometer Tach, Oil Press and Water Gauges
Grant Removable Steering Wheel

Hawk Brake Pads, Line Lock
Weld Drag Lite Wheels, M/T ET Drag Tires
